Some cool three axis milling machine pictures:

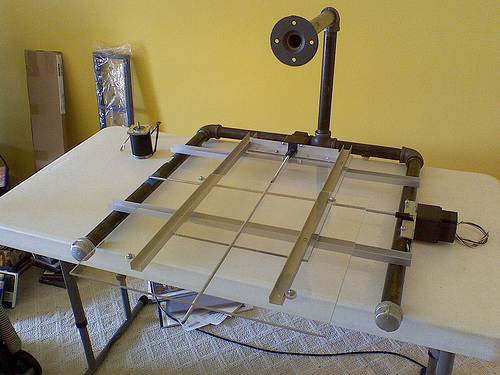

3-Axis CNCMilling Machine
Image by r_william.king
The thought for this project came from www.instructables.com/id/Simple-to-Build-Desk-Best-three-Axis-CN…
The whole unit is about 2′ x 2′ x 2′. 3/4 inch plexiglass is utilized although I will have a piece of some thing (say, MDF) on the best of the axis as a cutting surface. I have not however decided.

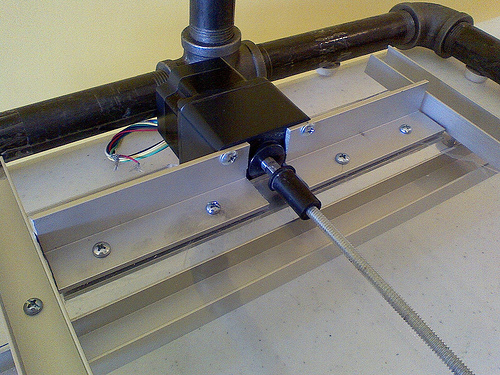

three-Axis CNCMilling Machine Motor Mount three
Image by r_william.king
A view of the complete motor mount bar. 3 pieces of L-channel (1 inch) had been employed to brace the motor onto the stage.
4 screw holes had been drilled into the L-channel to help the four mounting holes on the motor itself. Four screwholes have been also drilled across the beam by means of both sets of L-channel to support the motor onto the plexiglass.
